QD250 Vacuum Quick Disconnect Set NBR Seal, 1/4" NPT
QD250 Vacuum Quick Disconnect Set NBR Seal, 1/4" NPT
Regular price
$19.99 USD
Regular price
Sale price
$19.99 USD
Unit price
per
Couldn't load pickup availability

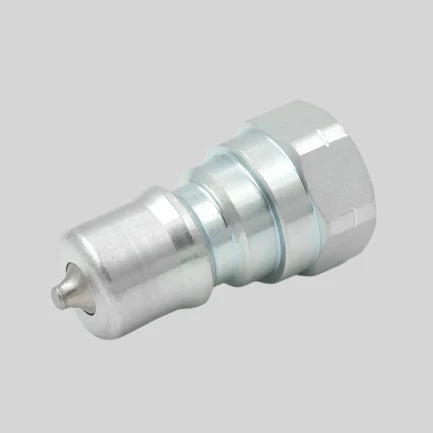

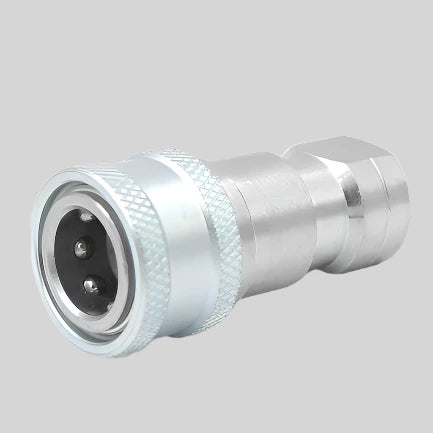

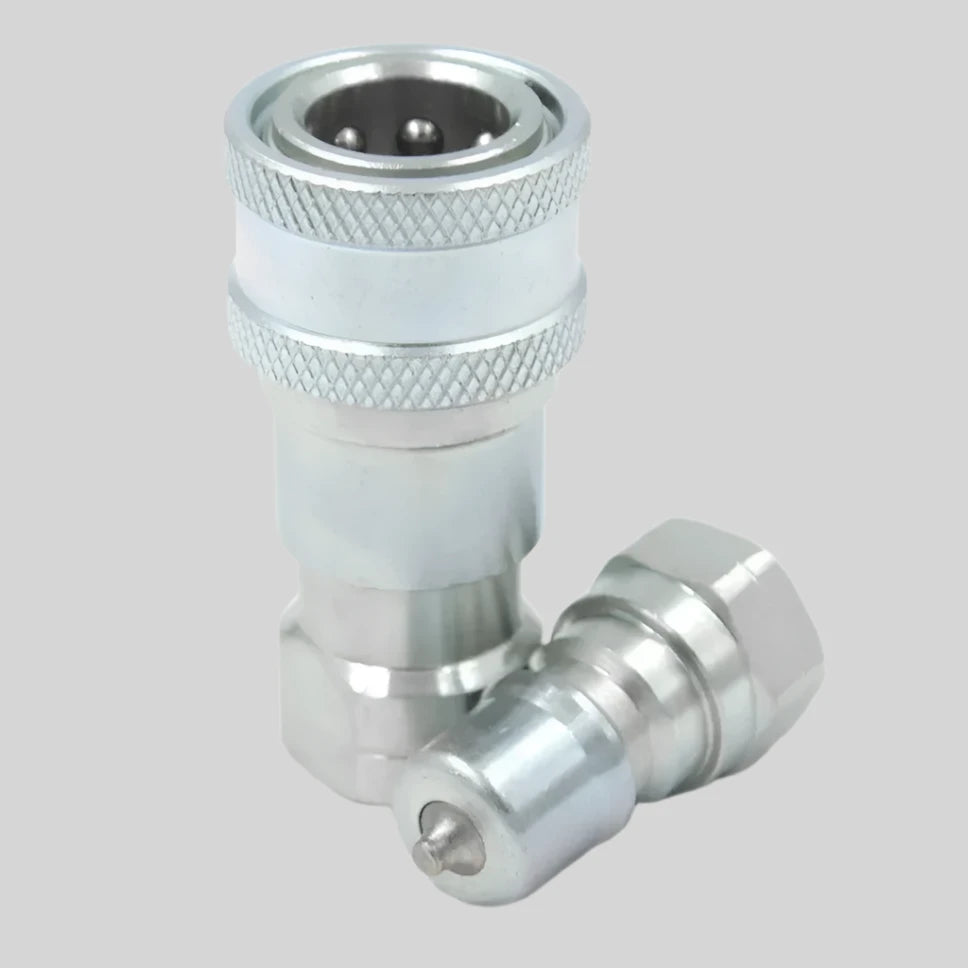

1/4" NPT Pair Coupler Hydraulic Quick Disconnect Ball Valve ISO 7241-B with a Nitrile Butadiene Rubber seal. Includes male and female connector set. This coupler has a double-O ring seal design for redundancy in low pressure and vacuum applications.
| Property | Typical Value |
| Max pressure (PSI) | 5000 |
| Max Flow (GPM) | 3 |
| Temperature Range | Viton™ range: -20 C to + 200 C / -4 F to + 400 F NBR range: -35 C to + 120 C / -30 F to + 250 F |
| Seal Material | Viton™ (for up to 200 C) or Nitrile Butadiene Rubber (NBR) (for up to 120 C) |
| Material Make | Heat-treated dichromate-plated steel |
| Equivalence | Airtech AQD 500TF equivalent with Viton Seals |
Download QD250 / QDF250NBR Data Sheet
For high volume or bulk orders, please contact your local Composites One sales representative.
