TP253 / TP253F Vacuum Probe
TP253 / TP253F Vacuum Probe
Regular price
$33.99 USD
Regular price
Sale price
$33.99 USD
Unit price
per
Couldn't load pickup availability

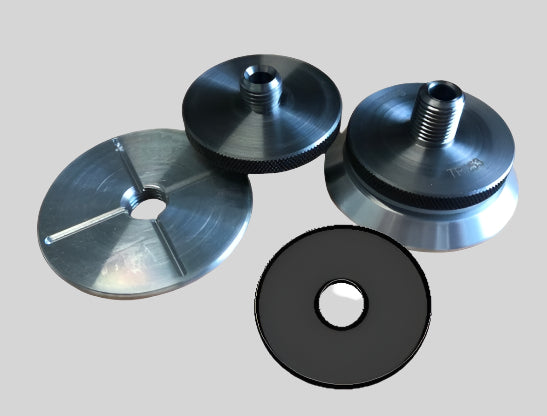

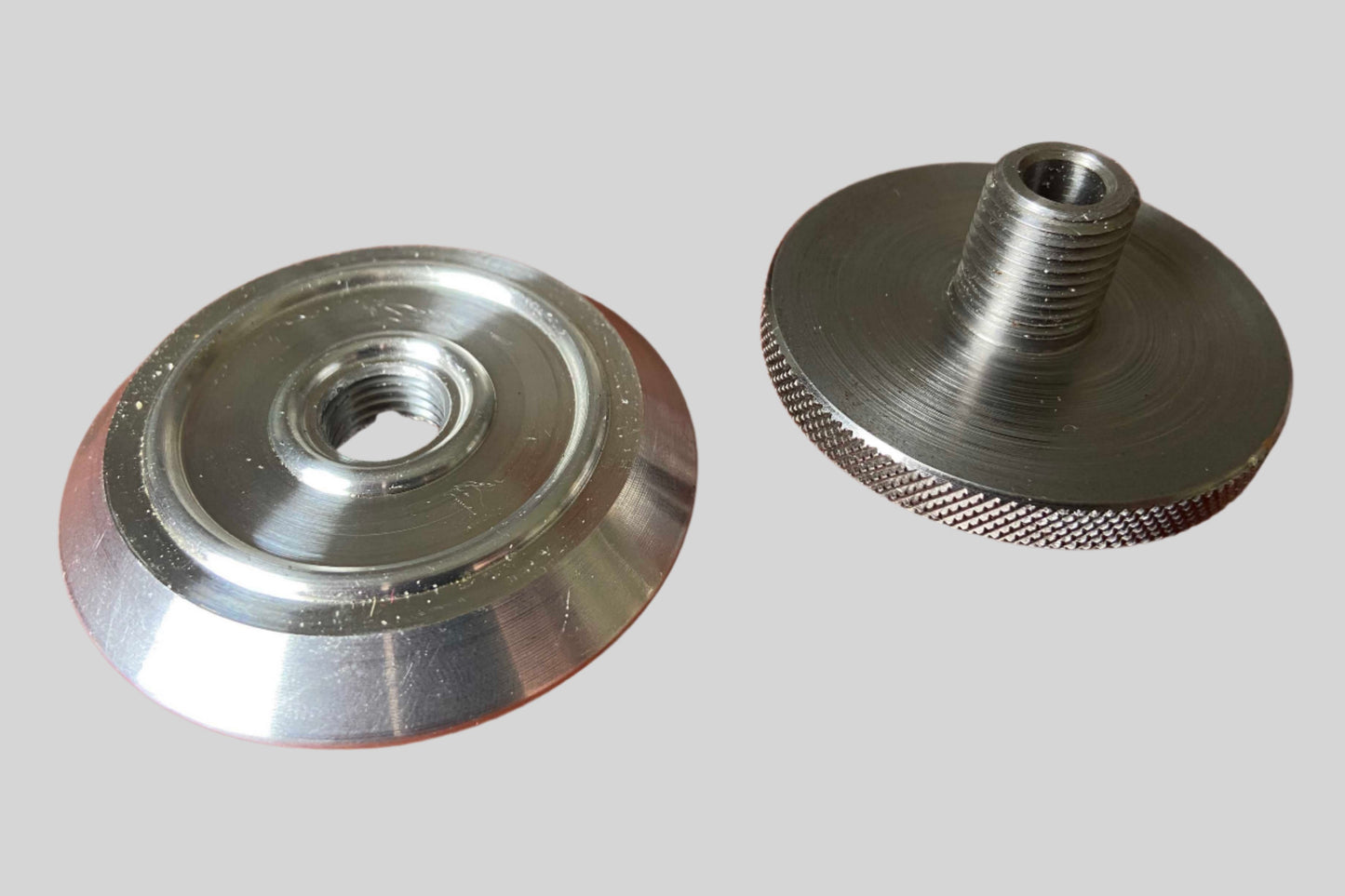

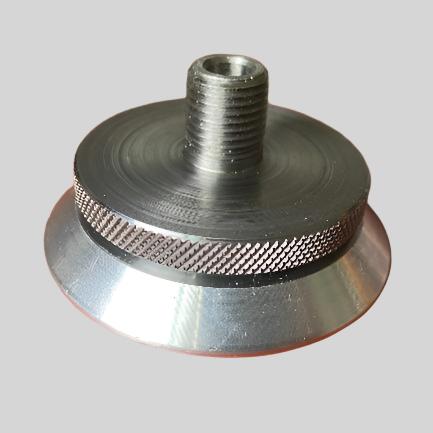

A machined aluminum threaded 2.5” diameter base plate, a steel deep knurled nut top plate with self cutting base insert and silicone gasket. Threading the top plate into the base plate will pierce a typical nylon bag during the application.

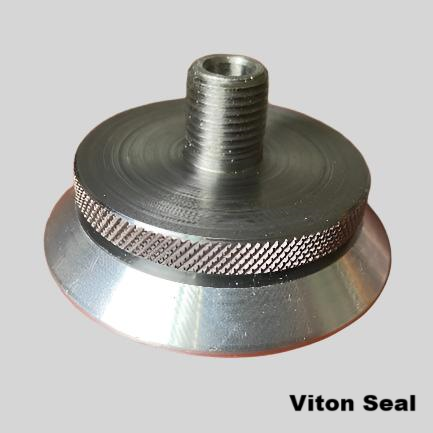

Two gasket material options are available: Silicone or Viton™
| Property | Typical Value |
| Construction | 3x pieces: 2.5” diameter aluminum base plate, steel top plate and silicone gasket |
| Material Type | Machined aluminum, machined steel with deep knurl |
| Gasket Material Type | Silicone or F410 Viton™, 0.062” thickness |
| Thread Size | ¼”-18 NPT - 0.52” male thread OD |
| Function Description | Service temperature to 482 F (250 C) |
Download TP253 Data Sheet
Download TP253F w/ Viton™ Gasket Data Sheet
For high volume or bulk orders, please contact your local Composites One sales representative.
