Viton Gasket Replacements (Set of 10)
Viton Gasket Replacements (Set of 10)
Couldn't load pickup availability

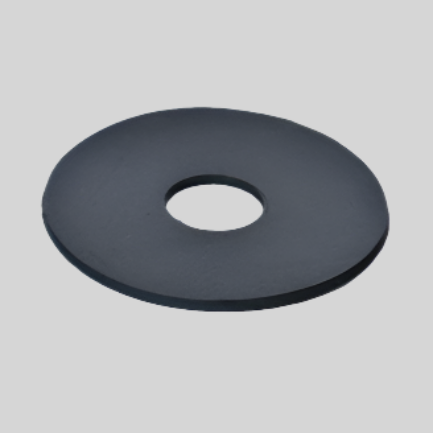

Viton gasket replacement for specific vacuum probes offered by pd3. This gasket does not contain silicone rubber. It is designed for continuous use in vacuum bag autoclave applications up to 482F, and can be used for short durations above this temperature. Note that acetone and MEK can attack and degrade, especially with prolonged or repeated exposure and IPA is recommended for standard cleaning.
Each gasket type is made to fit the specific vacuum probe. Please closely review the available gasket options and vacuum probe compatibility before purchasing. Gaskets are sold in a set of 10. Vacuum probes are sold separately.
| Property | Typical Value | |

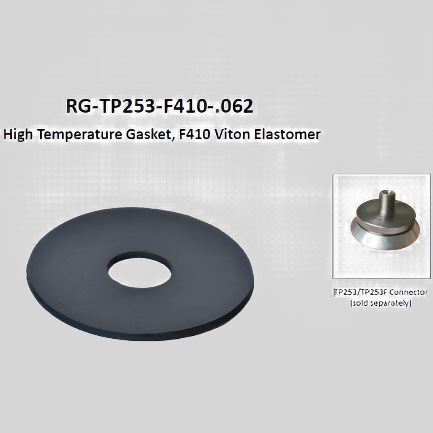

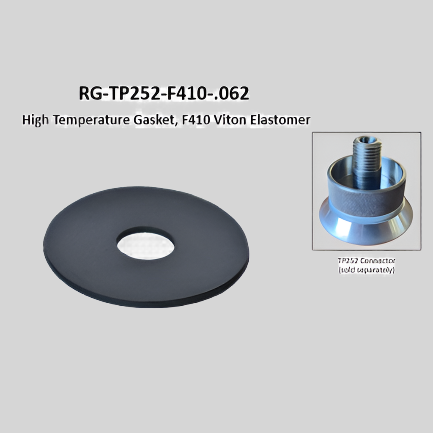

| Model No | RG-TP252-F410-.062 | RG-TP253-F410-.062 |
| Compatibility | TP252 / TP252F | TP253 / TP253F |
| Material Type | F410 Viton (FKM) | F410 Viton (FKM) |
| Dimensions | .062” Thick, .46” ID., 1.50” OD | .062” Thick, .46” ID., 1.90” OD |
Download Technical Data Sheet for TP252/TP252F Viton Gasket Replacement
Download Technical Data Sheet for TP253/TP253F Viton Gasket Replacement
