TP253 Silicone Gasket Replacement, Set of 12
TP253 Silicone Gasket Replacement, Set of 12
Couldn't load pickup availability

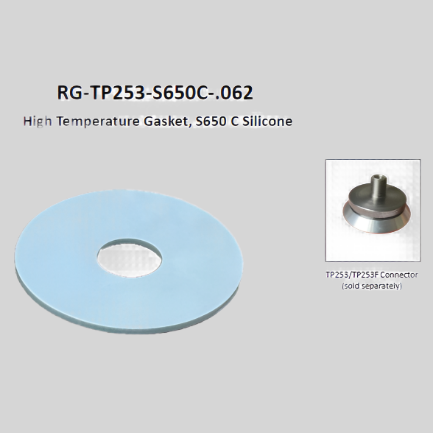

Set of 12 silicone rubber gasket replacements for the TP253 vacuum probe offered by pd3. It is designed for continuous use in vacuum bag autoclave applications up to 425F, and can be used for short durations above this temperature. IPA is recommended for standard cleaning, but it can also be cleaned with MEK or acetone. Full immersion in MEK and acetone causes swelling and may degrade the material.
Each gasket type is made to fit the specific vacuum probe. Please closely review the available gasket options and vacuum probe compatibility before purchasing. Gaskets are sold in a set of 12. Vacuum probes are sold separately.
| Property | Typical Value |
| Model No | RG-TP253-F410-.062 |
| Compatibility | TP253 |
| Material Type | S650C silicone, 50 durometer, light texture surface |
| Dimensions | .062” Thickness, .46” ID., 1.90” OD |
Download Technical Data Sheet for TP253/TP253F Silicone Gasket Replacement
